In this article, we'll guide you through the process of wiring a 13 pin trailer plug in just three easy steps. Step 1: Gather Your Supplies Before you begin, make sure you have all the necessary supplies. You will need a 13 pin trailer plug, a wiring harness, wire cutters, and electrical tape. It's also helpful to have a diagram of the wiring.

13 Pin Trailer Plug Wiring Diagram Uk / Diagram Vauxhallbo Tow Bar Wiring Diagram Full Version

Steps to Wire a 13 Pin Trailer Plug Wiring a 13 pin trailer plug isn't difficult, but it does require some attention to detail. Here are the steps to follow: Gather the tools and materials you will need. You will need wire cutters, wire strippers, a voltage tester, electrical tape, and a 13 pin trailer plug.

13 Pin Trailer Plug Caravan Helper

7-ways are some of the most common harnesses found on trailers. 7-ways provide the required running lights, turn signals, brake lights, and ground for the trailer. In addition, they provide three additional pins for a 12V hot lead, electric brakes, and reverse lights. Trailer wiring can be one of the most intimidating components of your towing.

Wiring Diagram For Trailer Plug 7 Pin

Trailer connectors between the trailer and passenger car, light truck or heavy trucks with 12V systems. In Europe, both 7-pin (ISO 1724) and 13-pin (ISO 11446) are common. The 13-pin version being phased in is newer, provides more services than the 7-pin, a more positive locking and also better protection against moisture and contamination.

Maypole Led Trailer Lights Wiring Diagram Wiring Diagram

20 reviews. 21 helpful votes. 2. Re: travel plug. 9 years ago. Every hotel we've ever stayed in in Europe--including in Stockholm --has had extra socket plugs that they are happy to lend. Report inappropriate content. Dubtourist804. Dublin, Ireland.

7 Pin Flat Trailer Plug Wiring Diagram Nz Circuit Diagram

One crucial component of wiring a trailer is the 13 pin trailer plug. While it may seem daunting at first, with the right guidance and tools, anyone can successfully wire a 13 pin trailer plug. The first step in wiring a 13 pin trailer plug is to gather all the necessary materials.

Wiring Diagram 13 Pin Trailer Plug

This wiring system is commonly used in Europe and provides a more secure and reliable connection between the trailer and the vehicle. It allows for the transmission of all the necessary signals, such as brake lights, indicators, and power supply, ensuring safe and efficient towing. The 13 pin trailer plug consists of 13 pins or connections that.

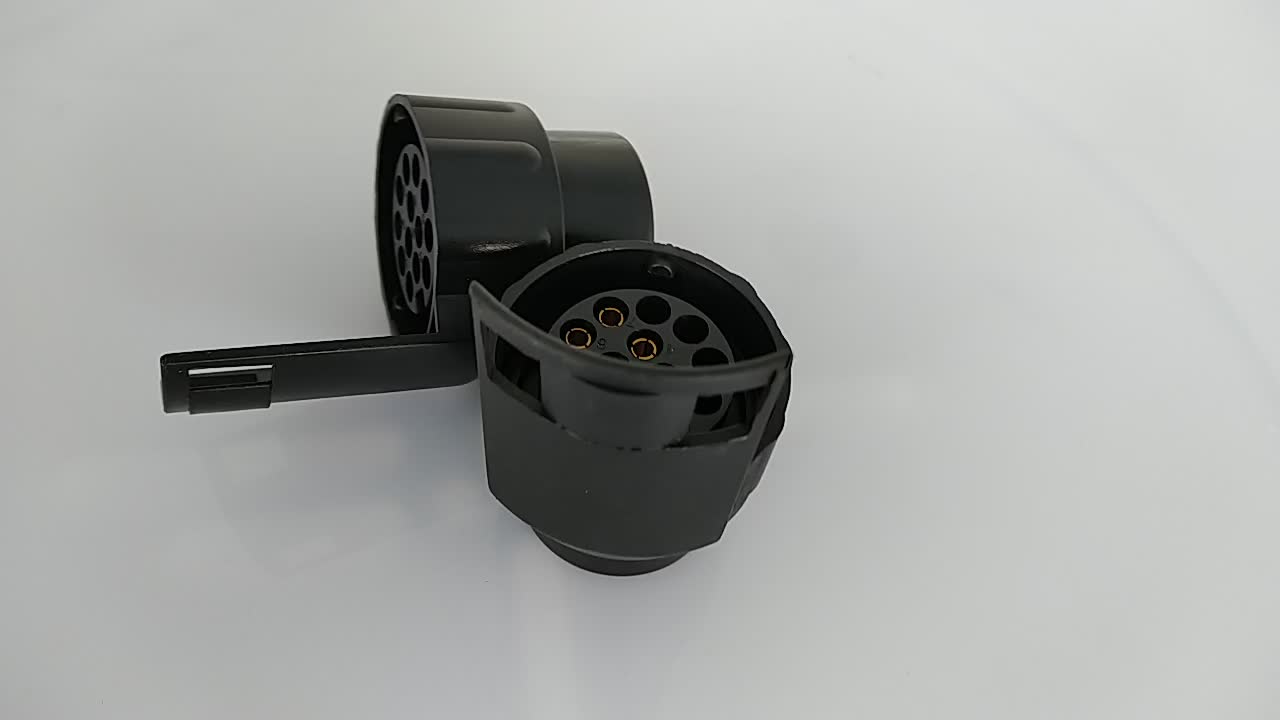

7 To 13 Pin Trailer Plug Wiring Connector 12v Towbar Adaptor Buy Towbar Adaptor,7 Pole Trailer

The 13 pin Euro type plug and socket is now fitted on most caravans to supply power and all the road lights. 13 pin trailer & caravan plug & socket wiring is not too difficult as the first 7 pins follow the old 12N ('N' type) wiring with 5 additional wires for reverse, a switched and a live power supply. All of this is in one plug, with a.

5 pin round to 4 pin flat trailer adapter Wiring Diagram and Schematics

How to Wire a 13-Pin Trailer Plug A 13-pin trailer plug is a type of electrical connector that is used to connect a trailer to a vehicle. It is typically used for towing a trailer that has lights, brakes, and a reverse signal. The 13-pin trailer plug has 13 terminals, each of which is used for a specific purpose.

Trailer Plug In Diagram 2003 Mazda Protege Stereo Wiring

Wiring Diagram Reference Trailer Plugplugaluminium. Trailer Wiring Diagrams Guides Advice Ate Uk. Wiring Diagrams For Trailers. Caramedic Servicing On Twitter Wiring Diagrams For 13 Pin Socket From 1st September 2008 Caravans Http T Co Lttj37ut6t. Trailer wiring connector pinout diagrams 4 6 7 pin connectors كلمات الاغنية شكل.

13 Pin Trailer Plug Wiring Diagram Uk Trailer Wiring Diagram Need a trailer wiring diagram

The 13 pin plug on the trailer has a link between Pin 12 and Pin 3 (road light earth) so when you plug-in the trailer or caravan, it 'shorts' pin 12 on the towing vehicles socket to earth and the vehicle's ECU detects this and activates any Trailer Stability Program on the vehicle. The full ISO standard is ISO 1446 for 13 pin connections.

Sound Wiring Diagram 13 Pin Trailer Plug 7 Pin Flat Trailer Wiring / How To Wire A 7 Pin Flat

The 13-pin wiring diagram replaced the N and S-type sockets on trailers and caravans across Europe. The advantage is that a 13-pin plug offers you reverse light facilities that the 7-pin cannot. Below you can see a fitting diagram which shows you the colours and functions of each pin. Since 2008 all caravans in Europe are wired with 13 pin plugs.

13 Pin Euro Trailer Plug Wiring Diagram Wiring Diagram

Wiring diagram for a 13 pin tow bar socket and plug. Many caravans built after 2008 have the new 13 pin connector for the electrical connections to the car. Whilst coupling up the 13pin plug to the connector takes a bit of getting used to as it requires a twist connection it does offer a few advantages. The connection is secure and the lead is.

15 pin trailer plug diagram Wiring Diagram and Schematics

We are Back again with another video, this time we are showing you how to wire up a 13 pin plug, we hope you find this helpful. Thank you for watching and do.

13 Pin Trailer Plug Wiring Diagram Uk Wiring Diagram

A colour coded trailer plug wiring guide to help you require your plugs and sockets. Includes guides for 7 pin, 6pin, 5 pin, 12 pin, 13 pin, pin and heavy duty round plugs and sockets.

Sound Wiring Diagram 13 Pin Trailer Plug 7 Pin Flat Trailer Wiring / How To Wire A 7 Pin Flat

For the 13-pin trailer plug diagram, see the image below. This image describes all thirteen functions of the Jaeger plug. With the help of this diagram, you can connect the lighting on the trailer. Wiring diagram for trailer lighting plug/socket 13-pin universal 12 volt. Connecting a 13-pin plug is very easy with the help of the wiring diagram.
